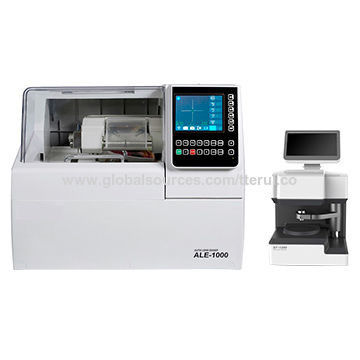

Optical instruments pattern less lens edger
1. High-resolution of 640*480, 5.7-inch TFT LCD, 1.1 lens photograph display and user-friendly
2. Smooth appearance design, including main body, scanner and center meter
3. More lens edge ring program: CR-39, high index, super hard coating, glass, PC and Trivex lenses
4. Two operation modes: PD system and boxing system
5. Self correct scanning, including axis and the distance of nose bridge
6. 100mm diameter grinding wheels can process high curved lenses
7. Bevel polishing make lens mounting perfect
8. Secure, stable, firm and durable like traditional supore LE series lens edger
Performance parameters:
Weight: 60kg
Hz: 50Hz
Sounds: ≤80dB
Voltage: 220V ±10%
Power: ≤500W
Power of main motor: power of main motor
Working environment: 5 to 40°C
Out size: 650*550*480mm
Characteristic of ST-1200
1. Touchscreen
2. Fast data reading
3. Shape and size of the scope canoe edited
4. Integrity design of scanner and center meter
5. With function of lens scanning and optical center positioning (optical center, geometric center two modes)
6. Data modification: shape of the scanning data can be modified
7. Data saving: the scanning data can be saved power-down, maximum of 500 sets of data can be saved
8. 7-inch LCD touchscreen (high resolution 1024*600p), turning screen module displays 1:1 of the lens
9. One scanner ST1200 can be connected with two ALE1000 at same time for edging lens
10. Simole operation and low failure rate
| Automatic edge machine: |
TR-ALE-1000 |
| Working mode: |
Automatic |
| Processing type: |
Pointy edges, plat band, bevel polishing |
| Lens materials: |
CR, glass and PC |
| Processing lens diameter scope: |
22-100mm |
| Shape dimensions: |
620x520x600mm |
| Weight: |
55kg |
