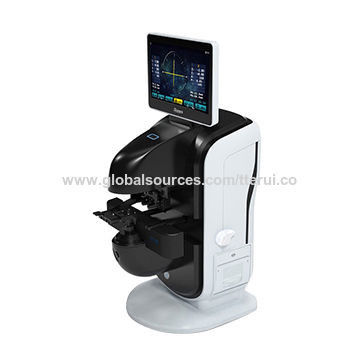

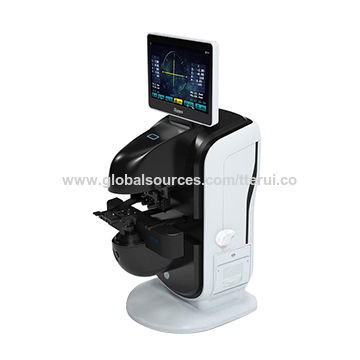

Auto lens meter TR-LM-700

Auto lens meter TR-LM-700

LM-700 lens meter can measure the single focal, Bi-focal and progressive lenses simply, quickly and accurately
More accurately measurement under the Hartmann principle
QR code printing without paper
All-in-one printer provides better solution for printing paper replacement
High-resolution true color screen
User-friendly menu for progressive measurement
Self-calibration function of the software
Excellent pressing and doting mechanism ensures accurate measuring result for each lens
Concise and compact design saves installation space
Tilting screen is convenient for users to observe
Intuitive, simple and clear interface makes operation more easier

Measurement range
Spherical degrees	-25 to +25°, 0.01/0.12/0.25° step
Cylindrical degrees	0 to ±9.99°, 0.01/0.12/0.25° step
Cylinder axis	0 to 180° (step: 1°)
Add	0 to +9.99°, 0.01/0.12/0.25D step
Prism degrees	0 to 15°, 0.01/0.12/0.25D step
Measurement mode
Cylinder	+, ±, -
Prism	X-Y, P-B
Contact lens	Soft/hard
Measuring modes	Single/progressive/automatic recognition
Specifications
Diameter of lens	20-108mm
PD	40-90, 0.5 mm step
Speed of measurement	0.1S
Display	7" TFT LCD
