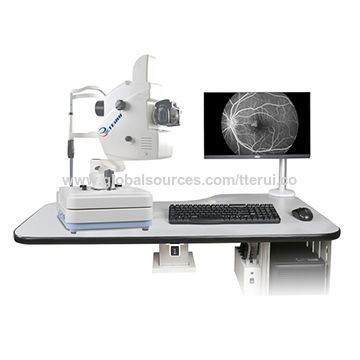

Fundus Camera TR-FC-6000B, 10 Seconds fast imaging

Fundus Camera TR-FC-6000B

• Top Optical Performance,10 seconds fast imaging
• Non-mydriatic design
• Smart micro movement platform
• Single image up to 53 degree range
• Full fixation system
• Up to 180 degree fundus shooting
• Multifuctional Software System

1. Retinal camera systems provide stunning high resolution 16 megapixel images with extraordinary speed, detail, contrast and color fidelity.
2. It can be used to document Glaucoma, Diabetic Retinopathy, Macular Degeneration and other sight threatening conditions.
(option) multifunction handle: adjust focus, illumination, flash intensity.
(option) ocular focus : with this function, you just need adjust the iris clear, then switch to retina, the retina is clear, then you can take picture, this function is very convernience for user

• Adopts the fifth generationg leading optical system in China
• Using imported aspherical lens,multi-coated handle
• Best Configuration,Easier Operation,clearly showing the retina details
• With Auto focus sysytem,Auto flash system,Auto image optimization
• Professional High Definition SLR Digital Camera ,up to 24.1 Mege pixel
• Five internal fixation lamp

  Model	TR-FC-6000B
  Camera brand and model	SLR Nikon D5200
  Camera resolution	24.1Mega Pixel
  Function	Color fundus and fundus fluorescein angiography
  Lens type	Aspherical
  Field of view	Up to 53°
  Non-mydratic	Yes
  Minimum pupil size	3.3mm
  Fundus fluorescein angiography	Flash & dynamic record
  Light source	Infrared LED
  Diopter compensation	≥±15D
  Fixation lamp	External fixation
  	5 Internal fixation(9 internal fixation optional)
  Alignment	Two dots
  Focus mode	Manual focus & Auto focus
  Exposure mode	Manual flash & Auto flash
  Dicom 3.0	Optional
  Eye position identification	Auto
  Optic angle	Horizontal±30°,Vertical ±12.5°
  Working distance	42mm±2mm
