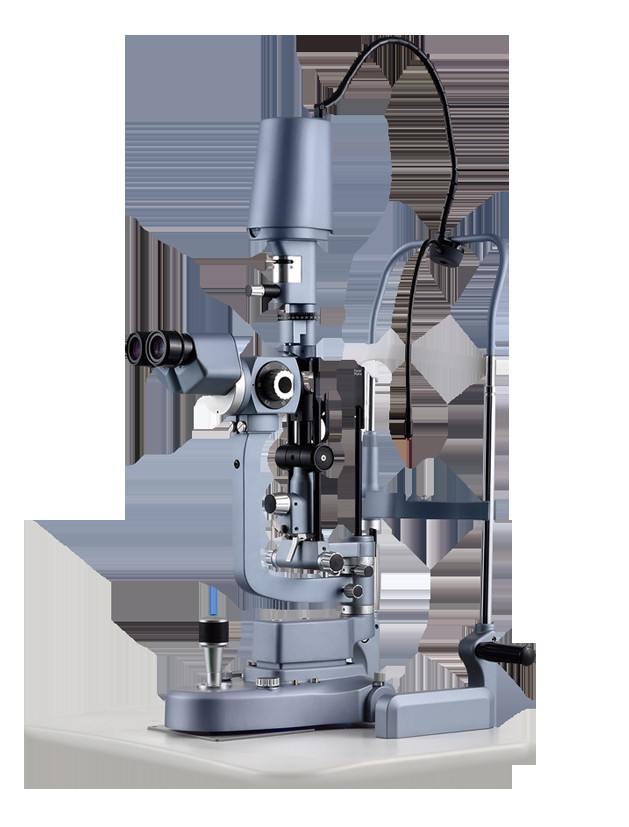

Slit Lamp Microscope | TR-100

Basic Information
Place of Origin: Made in China
Brand Name: Terui
Certification: CE,FDA
Model Number: TR-100
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 1-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Unit/Units per Month
Product Description

Slit Lamp Microscope | TR-100

Drum rotation with 5 steps

·High view point with large eyepiece

·Built-in Yellow filter



INTRODUCTION



Five-step drum magnifi cation for eyepiece. Sclera vein could be observed under the 40x magnification



·All the optical lenses are moistureproof, mildewproof and anti-refl ected treated



·Large spot diameter,slit length reach to 14mm, more comprehensive view of the eye condition



·Multi-coated optical glass technology, imaging is clear and bright, the view field is wide



·Brighter LED illumination enhances observation of the eye structures.



·All the joints can be connected by accessories with international standards







Optional:Goldman Applanation Tonometer

PARAMETERS









Microscope



Microscope Type Galilean stereoscopic microscope
Magnification Selection 5 steps by drum rotation
Eyepiece 12.5X

Magnification Ratio

(Field of view )

6×(Ф33mm),10×(Ф22.5mm),16×(Ф14mm),

25×(Ф8.8mm),40×(Ф5.5mm)

Pupillary adjustment 50mm ~ 82mm
Diopter adjustment ±7D



Base

Side Shift 110mm
Depth Shift 90mm
Height Shift 30mm
Chin rest Height Shift 80mm
Fixation Target Red LED







Illumination system

Slit width 0 ~ 14mm continuous (at 14mm slit becomes a circle)
Slit hight 1 ~ 14mm continuous
Slit Angle 0 ~ 180° adjustable
Slit Inclination 5°,10°,15°,20°
Diameter of Light spot Ф14,Ф10,Ф5,Ф3,Ф2,Ф1,Ф0.2
Filter Heat Absorption, Grey, Red-Free, Cobalt Blue , Built in-yellow
Illumination Bulb 3V 10W LED



Power

Input Voltage 100~240V AC
Frequency 50/ 60 Hz
Power Consumption 20 VA



Weight and size

G.W 20
N.W 15
Main Dimension 700mm(L)× 540mm(W)× 550mm(H)
