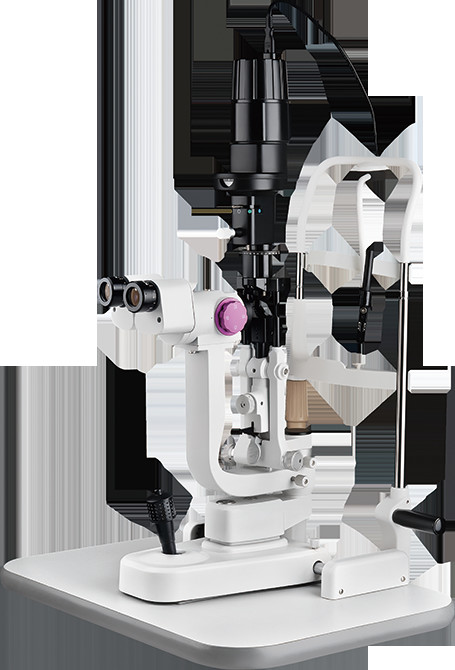

Slit Lamp Microscope |TR-11Z

Basic Information
Place of Origin: Made in China
Brand Name: Terui
Certification: CE,FDA
Model Number: TR-11Z
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: 1-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Unit/Units per Month
Product Description

Slit Lamp Microscope |TR-11Z

·Drum rotation with three steps

·High view point with large eyepiece

·Multi layer coating, large field of view, high light transmittance



INTRODUCTION

3 steps by drum rotation

·All the optical lenses are moistureproof , mildewproof and anti-reflected treated

·Large spot diameter,slit length reach to 14mm , more comprehensive view of the eye condition

·Multi-coated optical glass techonlogy , imaging is clear and bright , the view field is wide

·Osram light bulbs ,small heat , high-brightness , spot uniformity

·Handrail design , user-friendly and the convenience of patients

·Oversized joystick space,mobile base does not touch the hand

·All the joints can be connected by accessories with international standards


Optional :Goldman Applanation Tonometer







PARAMETERS









Microscope



Microscope Type Galilean stereoscopic microscope
Magnification Selection 3 steps by drum rotation
Eyepiece 12.5X

Magnification Ratio

(Field of view )

10×(Ф22.5mm),16×(Ф14mm),25×(Ф8.8mm)
Pupillary adjustment 50mm ~ 82mm
Diopter adjustment ±7D



Base

Side Shift 110mm
Depth Shift 90mm
Height Shift 30mm
Chin rest Height Shift 80mm
Fixation Target Red LED







Illumination system

Slit width 0 ~ 14mm continuous (at 14mm slit becomes a circle)
Slit hight 1 ~ 14mm continuous
Slit Angle 0 ~ 1800 adjustable
Slit Inclination 5°,10°,15°,20°
Diameter of Light spot Ф14,Ф10,Ф5,Ф3,Ф2,Ф1,Ф0.2
Filter Heat Absorption, Grey, Red-Free, Cobalt Blue
Illumination Bulb 12V 50W Halogen lamp
Power Input Voltage 110V / 220V AC
Frequency 50/ 60 Hz
Power Consumption 68 VA



Weight and size

G.W 18
N.W 15
Main Dimension 690mm(L)× 440mm(W)× 420mm(H)
