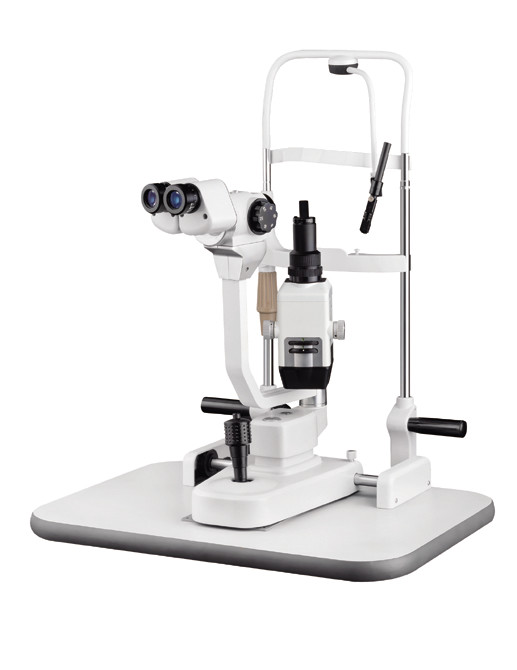

Name: Slit Lamp Microscope |TR-3H
Brand: Terui International Group Co.,Limited
SKU: TR-3H
Availability: InStock

Slit Lamp Microscope |TR-3H

Basic Information

Get Best Price Contact Now

Product Description

Slit Lamp Microscope |TR-3H

·Lower light source design ·5 steps by drum rotation ·eyepieces with high eye points and large field of view

INTRODUCTION

·Lower light source design

·5 steps by drum rotation

·Eyepieces with high eye points and large field of view

·Humanized design for Chin rest with armrest

PARAMETERS

Microscope	Microscope Type	Galilean stereoscopic microscope
	Magnification Selection	5 steps by drum rotation
	Eyepiece	12.5X
	Magnification Ratio (Field of view )	6×(Ф33mm),10×(Ф22.5mm),16×(Ф14mm), 25×(Ф8.8mm),40×(Ф5.5mm)
	Pupillary adjustment	50mm ~ 82mm
	Diopter adjustment	±7D
Base	Side Shift	110mm
	Depth Shift	90mm
	Height Shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Illumination system	Slit width	0 ~ 14mm continuous (at 14mm slit becomes a circle)
	Slit hight	1 ~ 14mm continuous
	Slit Angle	0 ~ 1800 adjustable
	Slit Inclination	/
	Diameter of Light spot	Ф14,Ф10,Ф5,Ф3,Ф2,Ф1,Ф0.2
	Filter	Heat Absorption, Grey, Red-Free, Cobalt Blue
	Illumination Bulb	3V 10W LED
Power	Input Voltage	100~240V AC
	Frequency	50/ 60 Hz
	Power Consumption	20 VA
Weight and size	G.W	16
	N.W	13
	Main Dimension	690mm(L)× 440mm(W)× 420mm(H)
