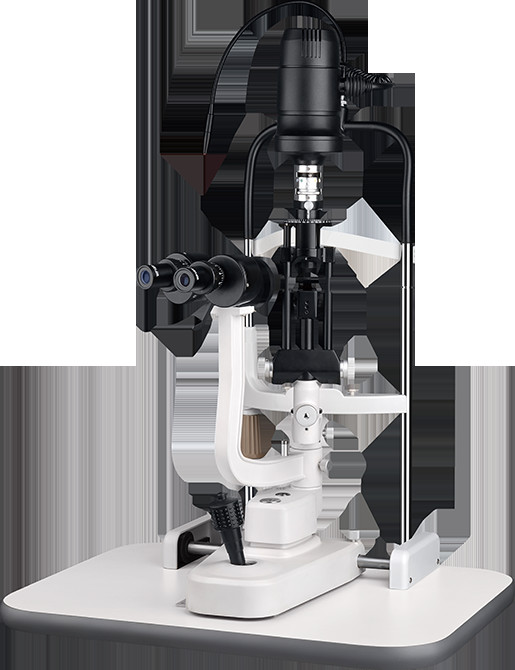

Name: Slit Lamp Microscope |TR-33I
Brand: Terui International Group Co.,Limited
SKU: TR-33I
Availability: InStock

Slit Lamp Microscope |TR-33I

Basic Information

Get Best Price Contact Now

Product Description

Slit Lamp Microscope |TR-33I

· Simple design of upper light source

· Objective lens with two steps

· 10X and 16X magnification

INTRODUCTION

· Simple design of upper light source

· Objective lens with two steps

· 10X and 16X magnification

Option :Goldman Applanation Tonometer

PARAMETERS

Microscope	Microscope Type	Converging Stereoscope microscope
	Magnification Selection	2 steps magnifications
	Eyepiece	10x
	Magnification Ratio (Field of view )	10×(Ф18mm),16×(Ф14.5mm)
	Pupillary adjustment	50mm ~ 82mm
	Diopter adjustment	±5D
Base	Side Shift	110mm
	Depth Shift	90mm
	Height Shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Illumination system	Slit width	0 ~ 9mm continuous (at 9mm slit becomes a circle)
	Slit hight	1 ~ 9mm continuous
	Slit Angle	0 ~ 1800 adjustable
	Slit Inclination	/
	Diameter of Light spot	Ф9,Ф7,Ф5,Ф3,Ф1,Ф0.2
	Filter	Heat Absorption, Grey, Red-Free, Cobalt Blue
	Illumination Bulb	12V 50W Halogen lamp
Power	Input Voltage	110V / 220V AC
	Frequency	50/ 60 Hz
	Power Consumption	68 VA
Weight and size	G.W	16
	N.W	13
	Main Dimension	690mm(L)× 440mm(W)× 420mm(H)
