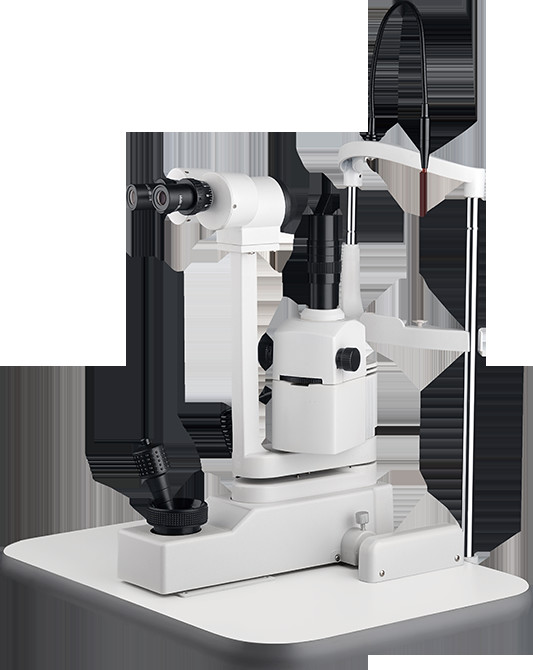

Name: Slit Lamp Microscope |TR-7000
Brand: Terui International Group Co.,Limited
SKU: TR-7000
Availability: InStock

Slit Lamp Microscope |TR-7000

Basic Information

Get Best Price Contact Now

Product Description

Slit Lamp Microscope |TR-7000

·Classic downlight angle stereoscopic shape

·Won the gold medal at the 99th International Medical Equipment Fair (Paris, France)

INTRODUCTION

Classic downlight angle stereoscopic shape

·Won the gold medal at the 99th International Medical Equipment Fair (Paris, France)

PARAMETERS

Microscope	Microscope Type	Converging Stereoscope microscope
	Magnification Selection	One step magnification
	Eyepiece	10x
	Magnification Ratio (Field of view )	10×(Ф18mm)
	Pupillary adjustment	50mm ~ 82mm
	Diopter adjustment	±5D
Base	Side Shift	110mm
	Depth Shift	90mm
	Height Shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Illumination system	Slit width	0 ~ 9mm continuous (at 9mm slit becomes a circle)
	Slit hight	1 ~ 9mm continuous
	Slit Angle	0 ~ 1800 adjustable
	Slit Inclination	/
	Diameter of Light spot	Ф9,Ф3,Ф1,Ф0.2
	Filter	Heat Absorption, Red-Free, Cobalt Blue
	Illumination Bulb	12V 50W Halogen lamp
Power	Input Voltage	110V / 220V AC
	Frequency	50/60 Hz
	Power Consumption	68 VA
Weight and size	G.W	16
	N.W	13
	Main Dimension	690mm(L)× 440mm(W)× 420mm(H)
