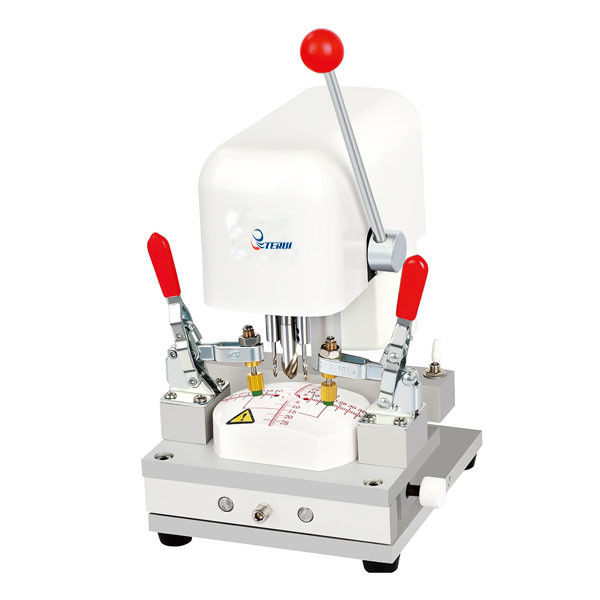

Pattern Drilling Machine-TR-1081Y

Pattern Drilling Machine-TR-1081

Category: Pattern Drilling Machine Series

Description

Overview:
Before processing lenses in an eyeglass shop, the lining of the frame is used to draw the pupil height line and pupil distance, and then three holes are drilled to replace the template and directly install it on the edging machine.

Detailed product description:
1. LY-918S adopts stainless steel accessories and high-power DC motor;
2. Drill holes directly on the lining of the eyeglass frame, and complete the three holes simultaneously;
3. The perforated lining serves as a template and does not require a separate template;
4. Grinding discs are more accurate, cost-effective, time-saving, and safer to use.

Features:
1. The dial can be dragged out to facilitate vertical observation of the scale inside the lens, reducing the horizontal deviation caused by the machine head blocking the oblique view.
2. Clamp the pressure bars tightly on both sides to prevent the lens from slipping.
3. The pressure head distance is adjustable and can be used for fixing small lens templates.
4. The distance between the dial can be adjusted slightly, resulting in higher accuracy.
5. The base is made of metal, making it more stable during operation.
