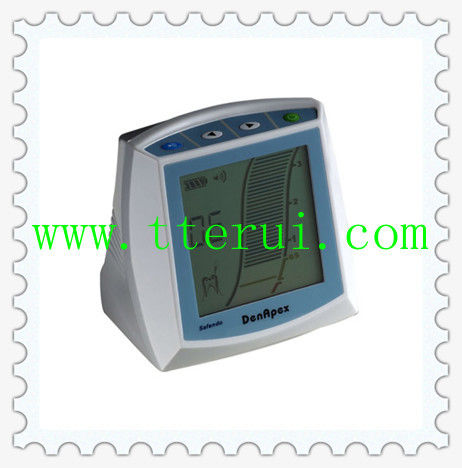

Dental Apex Locator TRE403

Dental Apex Locator    TRE403

It adopts multi-frequency operating system in global dental field!

Features:1. Exclusive producer in China adopting the most up-to-date sixth generation multi- frequency operating system in the area of apex locator.

2. Battery-operated by 3 pieces of AA battery to save the power

3. Large colored LCD screen showing the distance 34mm away from the apex.

4. Sound operated switching device can produce different kinds of sound to indicate the different position of file in the root canal

5. Dry and Wet condition are also available for accurate reading

6. Adjustable apical constriction (range 0--5mm)

7. Autoclavable accessories to avoid cross infection

8. Self-check circuit to guarantee the accuracy before operating

9. Compact, stable, ergonomic design for easy handling

10. Auto power shut-off

11. Safety test report, EMC test report and CE 0197 can be provide

Main technical index:

Frequency:

Lower frequency source: 400HZ ± 10%

High frequency source: 8000HZ ± 10%

Classification: Internally powered equipment

Open circuit voltage

Apex locator begin to work, output peak voltage≤ 350mV

The effect value of maximum output amplitude: voltage≤ 130mV

Power voltage: DC 4.5V

Display mode: color LCD screen and piezoelectric buzzer.

Dimension: W120*H80*D110mm    Net weight: about 700g
