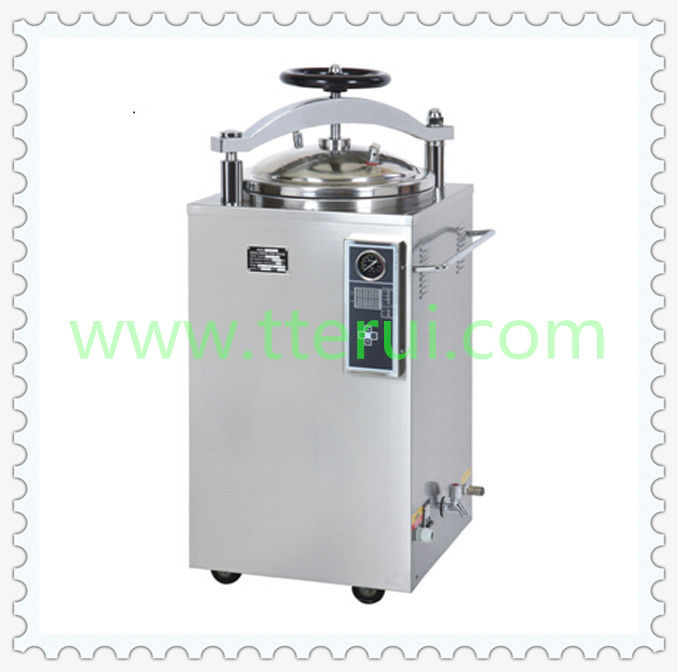

Vertical Pressure Steam Sterilizer TRE735B/750B/775B/700B

VERTICAL PRESSURE STEAM STERILIZER TRE735B/750B/775B/700B

(Digital Display Automation )

Characteristics:
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure

3.Door safety lock system

4.Digital display of working status,touch of key

5.Auto discharge the cool air,and steam discharging auto matically after sterilization

6.Over temperature&over pressure auto-protection

7.Safe protection of water lacking

8.Self-inflating type seal

9.Automatically shut off with beep reminding after sterilization

10.Used for sterilization of medical instruments, medical cotton products.

11.Fully stainless steel  SUS304/AISI 304 -3mm

12.24 months warranty

13.Possible to install drying system according request

Valid volume:35L(φ318*450mm)

             50L(φ340*550mm)

             75L(φ400*600mm)

            100L(φ440*650mm)

Working pressure:0.22Mpa0.22mpa0.22mpa0.14mpa

Working temperature:134℃134℃134℃126℃

Max. working pressure:0.23Mpa0.23Mpa0.23Mpa0.165mpa

Heat average: ≤±1℃

Timer: 0-99min or 0~99hour 59min

Adjustment of temperature:105-134℃105-134℃105-134℃ 105-126℃

Power:2.5kw/AC220V.50Hz    3kw/AC220V.50Hz   4.5kw/AC220V.50Hz   4.5kw/AC220.50hz

Transport dimension:450*450*1010(mm)     510*470*1130(mm)  560*560*1120(mm) 540*560*1250mm

G/N.W:72kg/56kg 88kg/68kg  100kg/80kg 110kg/85kg
