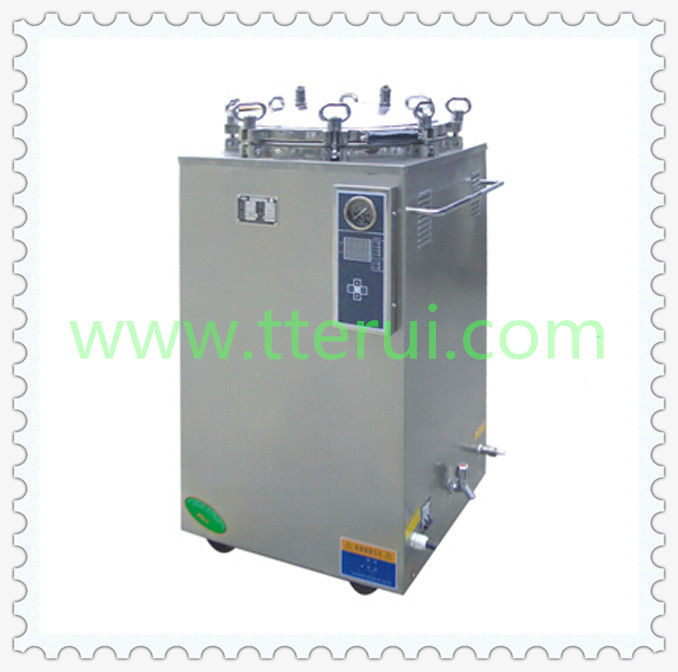

Vertical Pressure Steam Sterilizer TRE735C/750C/775C/700C

VERTICAL  PRESSURE STEAM STERILIZER TRE735C/750C/775C/700C

(Digital Display Automation )

Characteristics:

1. Fully stainless high-alloy steel structure
2. Digital display of working status, touch of key
3. Manual or semi-automatic control
4. Auto discharge the cool air, and steam discharging automatically after sterilization
5. Automatically shut off with beep reminding after sterilization
6. The accident protection system
7. Automatic off of heating elements at reducing of a water level
8. Blocking top cover at working
9. Blockage of starting at opening
10. Heater protection sensor
11. Pressure and water level control
12. With three stainless steel sterilizing baskets
13. Easy to operate, safe and reliable
14. The drying system is optional, which can be equipped according to the customers request

Valid volume:35L(φ318*450mm)

            50L(φ340*550mm)

            75L(φ400*600mm)

           100(φ440*650mm)

Working pressure:0.22Mpa

Working temperature:134℃

Max. working pressure:0.23Mpa

Heat average: ≤±1℃

Timer: 0-99minOR 0-99hour59min

Adjustment of temperature:105-134℃

Power:2.5kw/AC220V.50Hz    3kw/AC220V.50Hz   4.5kw/AC220V.50Hz   4.5kw/AC220.50hz

Transport dimension:570*550*970(mm)     590*590*1110(mm)  650*630*1150(mm)680*650*1220mm

G/N.W:56kg/42kg 68kg/50kg 90kg/70kg   105kg/85kg
