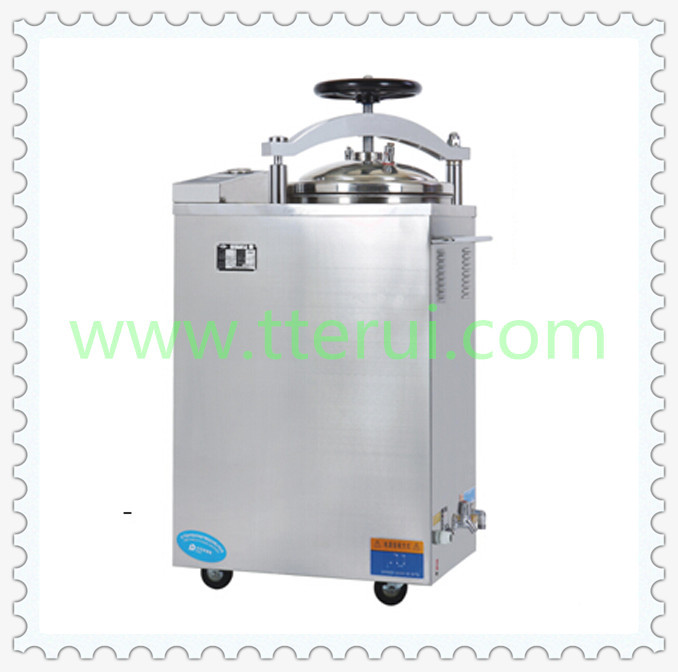

ELECTRIC-HEATED VERTICAL STEAM STERILIZER TRE735D/750D/775D/700D

 ELECTRIC-HEATED VERTICAL STEAM STERILIZER TRE735D/750D/775D/700D

 (Fully automatic microcomputer)

Characteristics:

1.Fully stainless steel structure

2.Hand wheel type of quick-open door structure

3.Door safety lock system

4.Automatically controlled by computer

5.Digital display of working status,touch of key

6.Over temperature&over pressure auto-protection

7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry

8.Self-inflating type seal

9.Safe protection of water lacking

10.The drying system is optional,which can be equipped according to the customers' request

11.Automatically shut off with beep reminding after sterilization

12.With two stainless steel sterilizing baskets

Valid volume:35L(φ318*450mm)

50L(φ340*550mm)      75L(φ400*600mm  )

100l(φ440*650)

Working pressure:0.22Mpa0.22mpa0.22mpa0.14mpa

Working temperature:134℃ 134℃ 134℃ 126℃

Max. working pressure:0.23Mpa  0.23Mpa 0.23Mpa 0.165Mpa

Heat average: ≤±1℃

Timer: 0-99min or0~99hour 59min

Adjustment of temperature:0-134℃  0-134℃0-134℃0-126℃

Power:2.5kw/AC220V.50Hz    3kw/AC220V.50Hz   4.5kw/AC220V.50Hz   4.5kw/AC220.50hz

Transport dimension:730*500*1170(mm)     730*500*1290(mm)  760*550*1290(mm)  820*600*1380mm

G/N.W:62kg/50kg 65kg/55kg 105kg/82kg   115kg100kg
