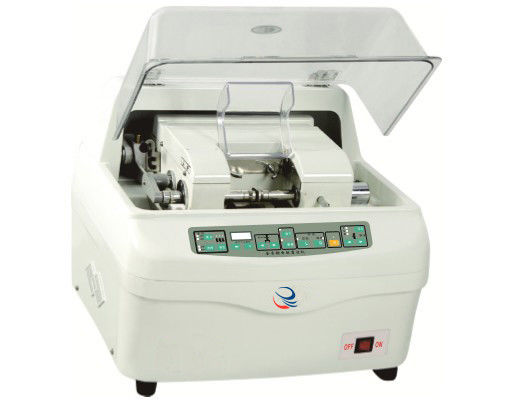

Auto Lens Edger TR-AE-200

Auto lens edger TR-AE-200

Newly be equipped with grinding specific program, automatically control water flow during grinding to be combined with excellence of all previous styles, brand new design, fashionable and attractive

Auto calibrating function: each falling place of the grinding wheel will be calibrated automatically
Results will be saved automatically, no necessary to press other buttons
Operation is easy to be understood and learned

Calibrate lens size automatically: this edger is fixed with auto calibrating system an initial zero calibration proceed simultaneously during starting grinding lens , ensuring the size consistence of the right and left lens and enhancing the accuracy of lens processing


★ Standard scheme of grinding wheels( resin coarse grinding wheel, glass coarse grinding wheel, v-shaped flat grinding wheel and resin flat polishing wheel)
★Function Instructions with Digital display
★Head pressure is adjusted with three shelves, protecting lens and axle from shifting
★Build-in counter display
★lens grinding system with automatic tracking
★Imported material and demand wheel reaching international standard
★Intelligent computer of digital technology, bevel shape, grinding force and grinding speed can be adjusted freely , to make sure lens grinding quality

Technical parameters
Grinding clamp force: 0.5-0.78MPa
Working mode automatic
Edge grinding diameter scope: 22-80mm
Working noise ≤60dB
Wheels diameter option: 100mm
Wheels group allowable width: 60-100mm
Electric power: ≤396W
Grinding wheels polishing wheel, glass wheel, V wheel
wheel
Workable lenses: Gl, Cr
Working voltage 110V AC, 220V AC, 50/60Hz
Net weight: 48Kg
Shape dimensions: 468*460*400mm

Certifications: CE, ISO
Minimum order quantity: 1 piece
Packing details: standard export packing
Delivery time: 1-10 days, depends on quantity
Payment terms: T/T, Western Union, L/C
