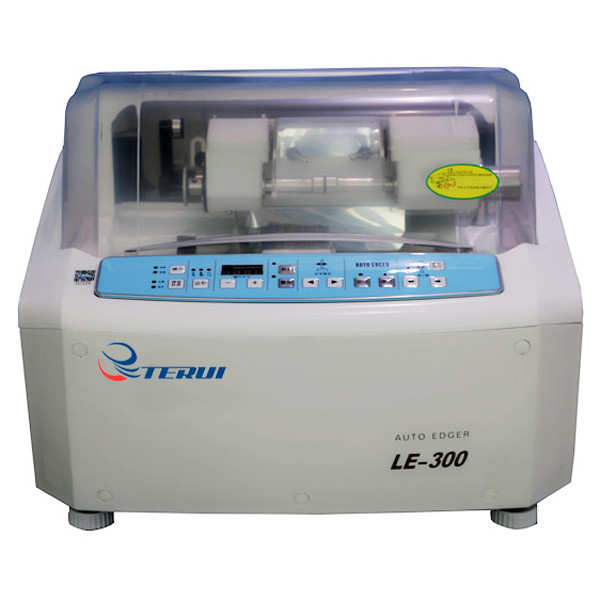

Auto Lens Edger , with processed lenses: min 22mm, max 100mm

Auto lens edger TR-LE-300

Auto lens edger traditional model
Diameter of processed lenses: min 22mm, max 100mm
Range of adjustable measurement: -6.0-6.0mm (scale: 0.05mm)
Electrical source: 220/110V AC 50/60Hz
This model has been sold more than 10000 thousand from the beginning to June 2011
Very popular in home and aboard
Certifications: CE, ISO
Minimum order quantity: 1 piece
Packing details: standard export packing
Delivery time: 1-10 days, depends on quantity
Payment terms: T/T,  L/C

Automatic edge machine	TR-LE-300
Working mode	Automatic
Size of diamond wheel (diameter and width of grinding wheel) mm	CR wheel: 100x16 Glass wheel: 100x16 V groove wheel: 100x23 Polishing wheel: 100x11
Processing lens diameter scope	22-100mm
Processing type	Pointy edges, platband , bevel polishing
Lens material	CR, glass
Shape dimensions	510x490x400mm
Weight	49kg
Rated power	500W
