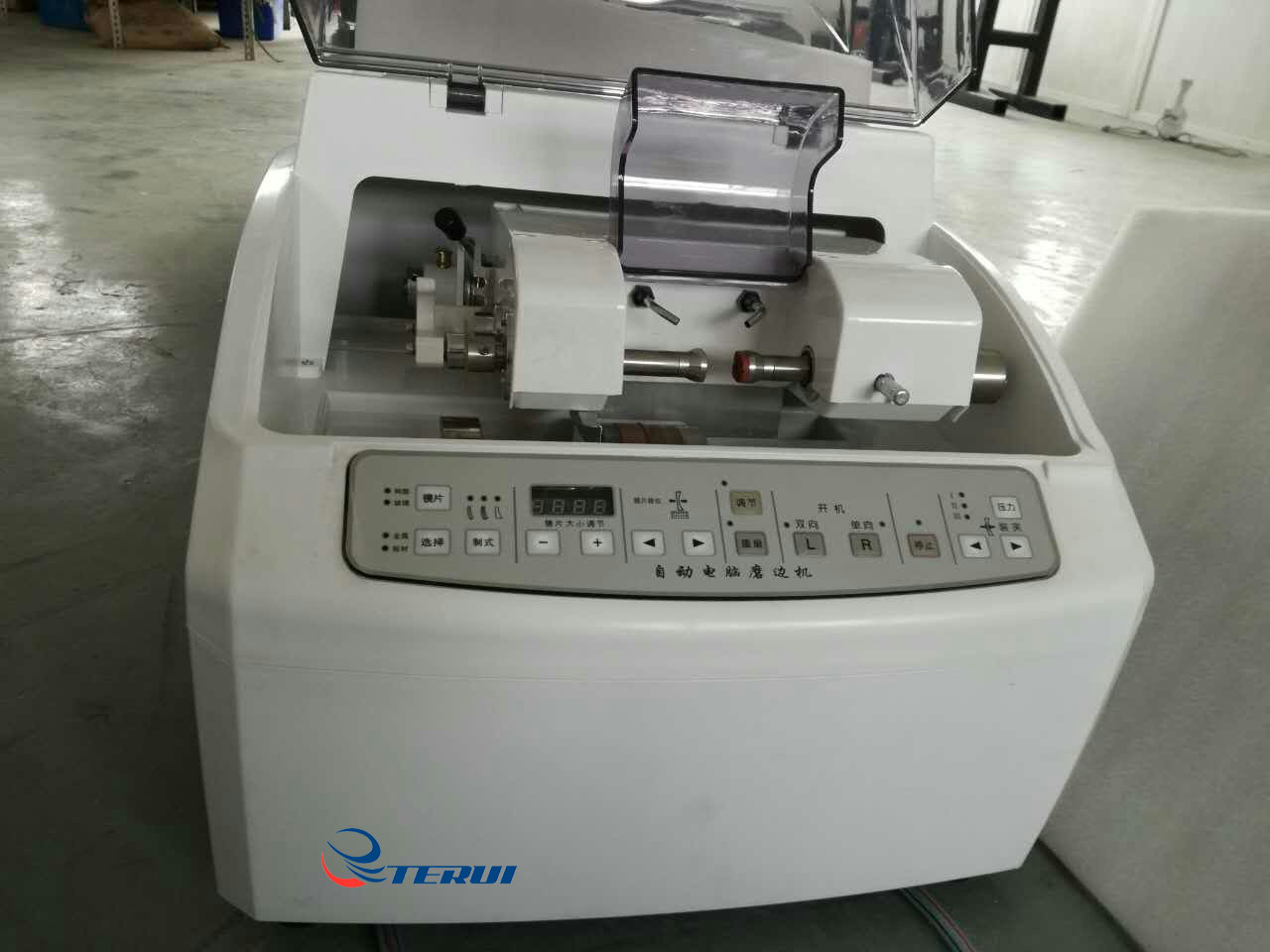

Auto Lens Edger TR-AE-600P

Auto lens edger TR-AE-600P

Newly be equipped with PC wheel and PC lens grinding specific program, automatically control water flow during grinding. To be combined with excellence of all previous styles, brand new design, fashionable and attractive.

Auto calibrating function: Each falling place of the grinding wheel will be calibrated automatically. Results will be saved automatically, no necessary to press other buttons. The operation is easy to be understood and learned.

Calibrate lens size automatically: this edger is fixed with auto calibrating system. An initial zero calibration proceed simultaneously during starting grinding lens , ensuring the size consistence of the right and left lens and enhancing the accuracy of lens processing.

★ Professional Polycarbonate(PC)grinding wheel.
★ Standard scheme of grinding wheels( PC rough wheel,Glass rough wheel,"V" fine wheel,Polishing wheel)
★Function Instructions with Digital display
★The head pressure is adjusted with three shelves, protecting lens and axle from shifting.
★Build-in Counter Display
★lens grinding system with automatic tracking
★Imported Material and Dimand Wheel reaching international standard.
★Intelligent computer of digital technology , Bevel shape, grinding force and grinding speed can be adjusted freely , to make sure lens grinding quality.


Technical parameters
Grinding Clamp Force: 0.5-0.78MPa
Working mode automatic
Edge Grinding Diameter Scope 22mm-80mm
Working Noise≤60dB
Wheels Diameter option: 100(mm)
Wheels Group Allowable Width: 60-100(mm)
The electric power: ≤396W
Grinding wheels Polishing wheel,Glass wheel,“V”wheel,PC wheel
Workable lenses Gl,Cr,Pc
Working voltage AC 110V ; AC 220V 50/60Hz
Net weight 48Kg
Shape dimensions 468(L)*460W(W)*400(H)mm


Certifications: CE, ISO
Minimum order quantity: 1 piece
Packing details: standard export packing
Delivery time: 1-10 days, depends on quantity
Payment terms: T/T, Western Union, L/C
